FujiFilm - Wide Format Solutions

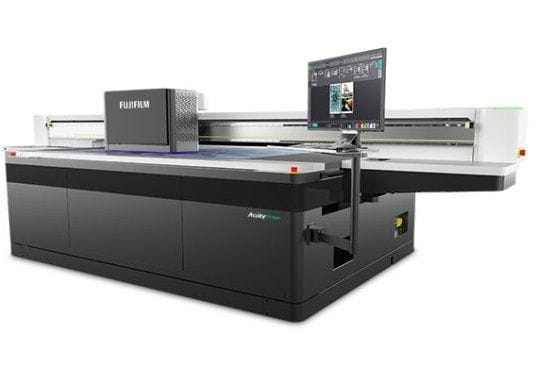

FujiFilm - Acuity Prime Series
Dedicated Flatbed Design - The dedicated flatbed design with media registration pins ensures accurate registration for edge-to-edge printing and tiling of large layouts over multiple boards, even with multiple print passes.
Compact Footprint - Acuity Prime printers are built to fit into compact spaces and the accessible design gives you flexibility in the way you work around the machine.
Image Quality - Greyscale printheads in a staggered configuration deliver near-photographic image that is consistent over the whole bed.
Multiple Colour Channels - The Acuity Prime can be configured with either 4,5,6 or 7 colour channels. The channels are populated with ink sets that best suit your application needs, including CMYK, white, clear and a jettable primer for excellent adhesion to more industrial media types.
Registration Pins - Pneumatic registration pins enable quick, repeatable, easy loading of rigid media in perfect registration. Media loading pins are operated at the touch of a button creating easy, accurate and repeatable print registration from one sheet to the next.

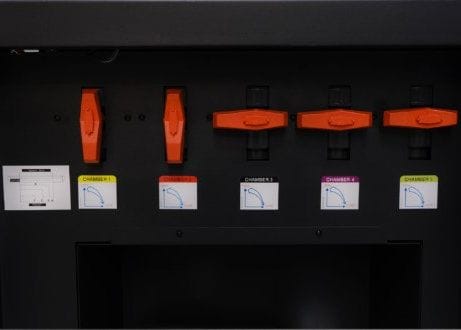

Vacuum Zones - Five dedicated vacuum zones tailored to common media sizes reduce the amount of bed masking required and enable quick media changeover. Adjustable vacuum strength provides optimum handling for different media. The powerful vacuum table holds media firmly in place, even for edge-to-edge and pre-shaped materials. Rigid and flexible material are held perfectly flat for exact consistent quality and registration across every sheet.
Expand your creative options - Create it all with Acuity Prime and Uvijet HM inks. Print with white and clear inks directly to almost any material in perfect registration. Jettable primer expand the Acuity Prime applications and compatibility to an ever wider variety of industrial media such as glass, metal and wood.
Designed with the operator in mind - We understand the value of production time and usability, so we design the Acuity Prime with the operator in mind. With a new and user-friendly GUI, easy clean printheads maintenance and visible status lights for ink tanks, operators are able to spend less time maintaining the machine and more time printing.

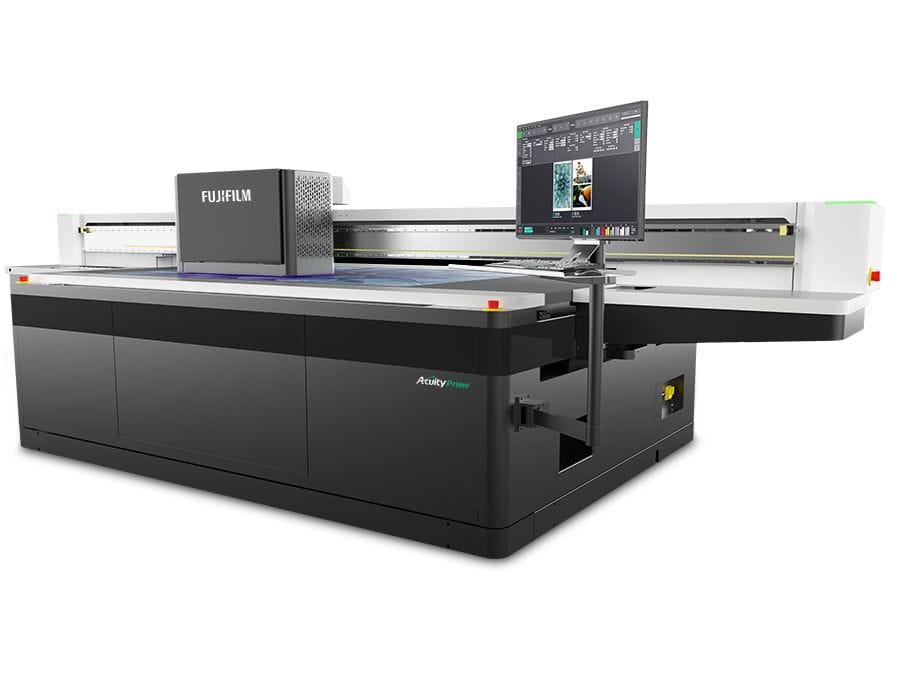

FujiFilm Acuity Series Prime 20
High Quality - Entry Level Solution
The Acuity Prime is a true flatbed that delivers exceptional quality, speed and efficiency, printing on a range of rigid and flexible media, supported by five dedicated vacuum zones and a jettable primer.
Maximum:
- Size - 50" X 100" (1.27m X 2.5m)
- Thickness - 2" (51mm)
- Print Area - 50" X 100" (1.27m X 2.5m)
- Weight - 9lbs/ft2 (45kg/m2)
- Printing Resolution - 726 X 1,200 dpi (8 pass)
Configuration: up to 6 channel CMYK + CI + W (or CMYK + P + CI)
Curing System: Long lasting, low energy LED curing system
Sample Print Speeds - 33% smoothing/Sketch - 1399 ft2/hr
Table size - 4' X 8'
FujiFilm Acuity Series Prime 30
High Quality - Entry Level Solution
The Acuity Prime is a true flatbed that delivers exceptional quality, speed and efficiency, printing on a range of rigid and flexible media, supported by five dedicated vacuum zones and a jettable primer.
Maximum:
- Size - 50" X 100" (1.27m X 2.5m)
- Thickness - 2" (51mm)
- Print Area - 50" X 100" (1.27m X 2.5m)
- Weight - 9lbs/ft2 (45kg/m2)
- Printing Resolution - 726 X 1,200 dpi (8 pass)
Configuration: up to 7 channel CMYK + W + P + CI
Includes all of the options for Acuity Prime 20 also.
Curing System: Long l7asting, low energy LED curing system
Sample Print Speeds - 33% smoothing/Sketch - 1615 ft2/hr
Table size - 4' X 8'

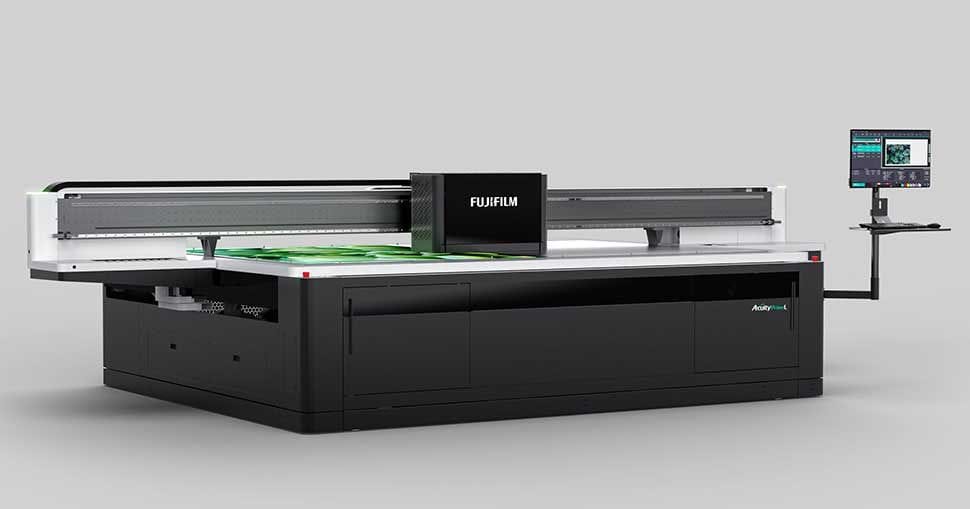

FujiFilm Acuity Series Prime L
High Quality - Entry Level Solution
The Acuity Prime is a true flatbed that delivers exceptional quality, speed and efficiency, printing on a range of rigid and flexible media, supported by five dedicated vacuum zones and a jettable primer.
Maximum:
- Size - 50" X 100" (1.27m X 2.5m)
- Thickness - 2" (51mm)
- Print Area - 126'' x 78.75'' (3200 mm x 2000 mm)
- Weight - 9lbs/ft2 (45kg/m2)
- Printing Resolution - 726 X 1,200 dpi (8 pass)
Configuration: up to 6 channel CMYK + CI + W (or CMYK + P + CI)
Curing System: Long lasting, low energy LED curing system
Print Speeds - 33% smoothing/Sketch - 2174 ft2/hr
Table Size - 6.5 X 10.5

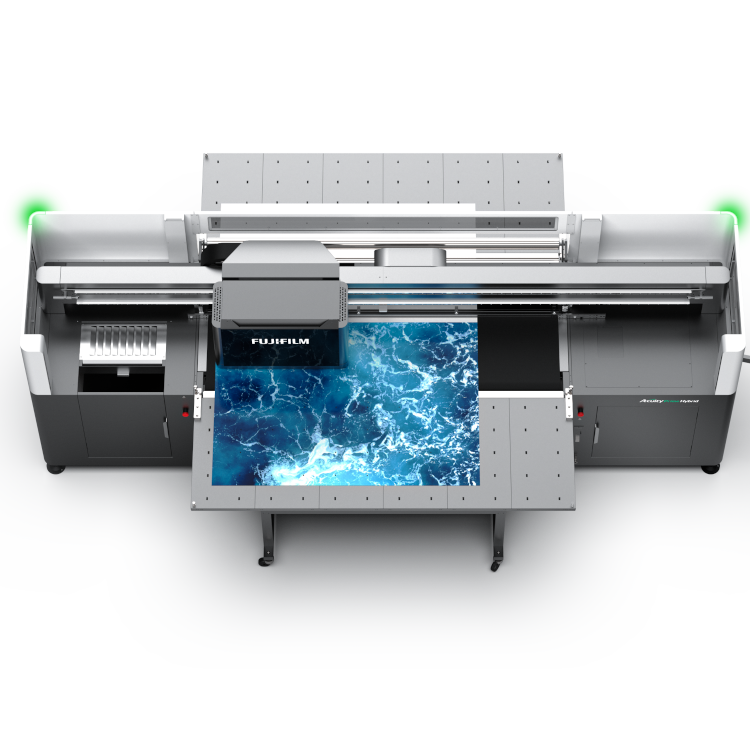

FujiFilm Acuity Series Hybrid
Versatile & Ultra Reliable
Easily switch from roll & rigid, or set it up and run.
A game changing, LED UV hybrid machine capable of rigid and roll printing.
The design of the printer is based on the award-winning Acuity Prime, including the printhead carriage, ink system, Automatic Printhead Maintenance System (APMS) and software interface.
Maximum:
- Width - 80" (2.05m)
- Length/Media Weight - Rigid - 53" (1350mm) when 1 table is connected, 83" (2120mm) when 2 tables are connected/99lbs/ft2
- Length/Media Weight - Roll - 12.6 outer diameter/220 lbs/roll
- Thickness - 2" (51mm)
- Printing Resolution - 726 X 1,200 dpi (8 pass)
Configuration: up to 7 channel CMYK + W + P + CI
Curing System: Long lasting, low energy LED curing system
Print Speeds - 33% smoothing/Sketch - 1518 ft2/hr
Although we've highlighted some of the features that make these Fuji solutions great, to find out what would work best for you, and how some of the additional functionality can help you deliver the highest quality output to your clients, on time and on budget, get in touch with us today.
)
)
